Indoor Fixed 640B Series

Shenzhen Huayuanlai Optoelectronic Technology Co.,Ltd.

Ultra-light weight 6.5kg
Ultra-thin structure 6.9cm
Ultra High Refresh 3840HZ
High precision splicing error less than 0.1mm
Quick lock for fast splicing
Long-term durability
Pixel Pitch Of Products.
P1.25丨P1.5丨P1.6丨P1.8丨P2丨P2.5丨P3丨P4丨

GET A QUOTE

Description

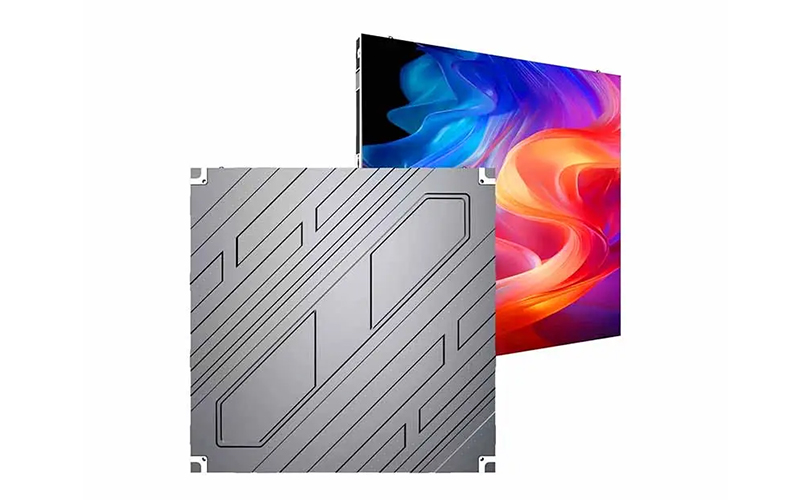

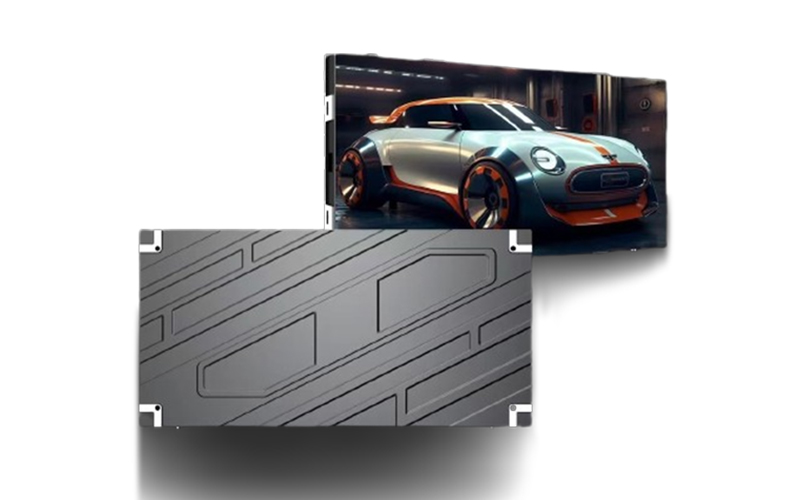

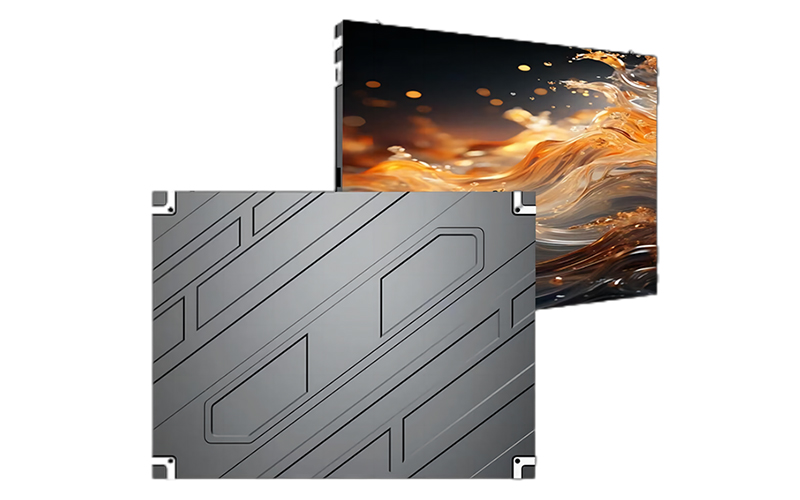

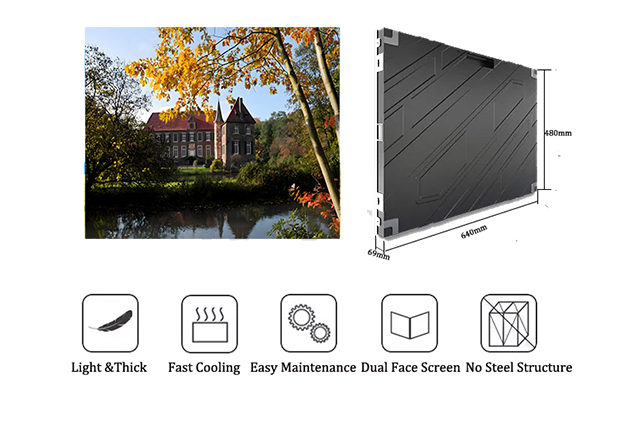

Cabinet Dimension:

640(W)×640(H)mm

640(W)×480(H)mm

960(W)×480(H)mm

320(W)×480(H)mm

320(W)×640(H)mm

Material: Die-casting Aluminum

Pixel Pitch Of Products:

P1.25丨P1.5丨P1.6丨P1.8丨P2丨P2.5丨P3丨P4丨

1.Material Advantage

Die-casting aluminium box structure, high strength, good heat dissipation, strong deformation resistance, suitable for long-term stable operation.

Lightweight design (box weight is usually 5-15kg), 30%-50% lighter than the traditional iron box, reducing transport and installation costs.

Ultra-thin thickness (69mm), space-saving, suitable for indoor high-end scenes (such as conference rooms, exhibition halls, stages).

2.Installation Convenience

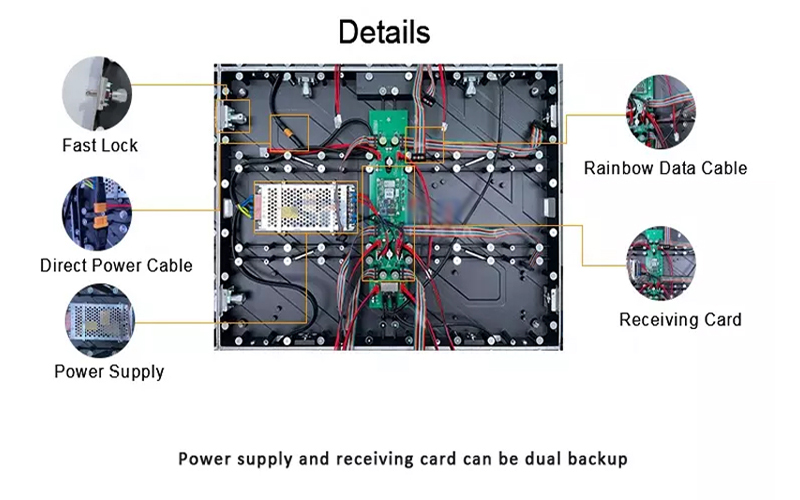

Magnetic or quick-lock structure design, support front/back maintenance, no additional tools can be quickly disassembled and installed.

Support hanging, wall mounting, floor stand and other installation methods, flexible to adapt to different space requirements.

3.Splicing precision

High-precision CNC processing, box flatness error <0.1mm, splicing seam ≤ 0.5mm, to ensure that the picture is not cut.

Supporting horizontal/vertical fine-tuning, seamless splicing can be achieved, adapting to curved, shaped and other creative display needs.

4.Modular design

Standardised box size, support for rapid assembly and expansion, single box failure can be replaced independently, low maintenance costs.

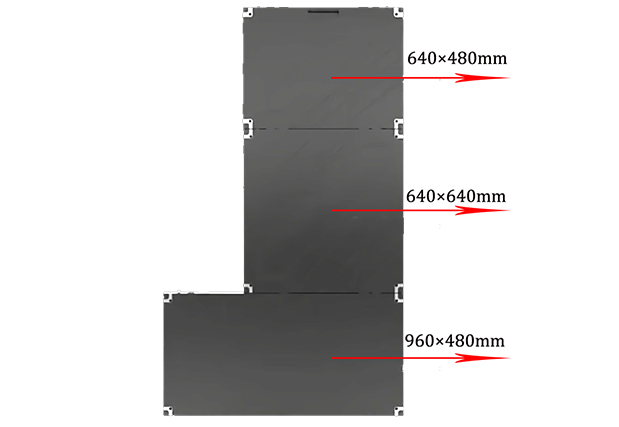

Multi-size free combination

All sizes (640×640, 640×480, 960×480, 320×480mm) can be spliced with each other to flexibly match different scenarios with different ratio requirements (e.g. 16:9, 4:3, ultra-wide screen, etc.).

Modular design, support horizontal, vertical or mixed splicing, to meet the needs of creative display (such as digital art wall, immersive gallery).

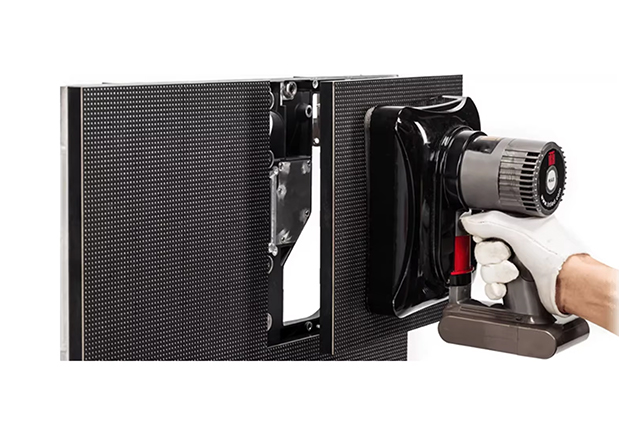

Magnetic front maintenance technology
The magnetic front maintenance design eliminates the need to dismantle the peripheral box, and allows a single person to quickly disassemble the faulty module from the front of the screen, increasing maintenance efficiency by 70%.

Quick-Lock Splicing System
Quick-Lock structure, precise snap between boxes, no tools, 3 seconds to complete a single box splicing, installation efficiency increased by 60%.

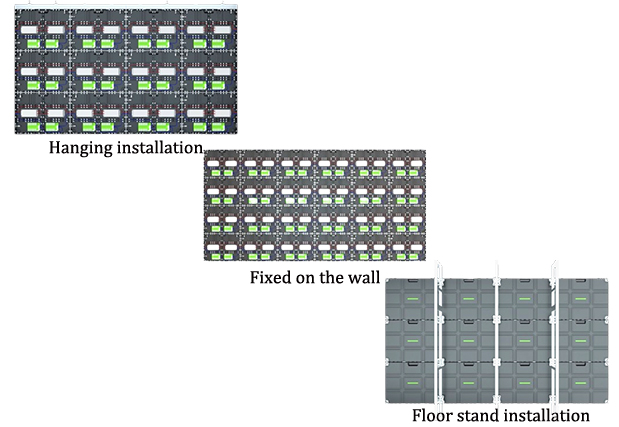

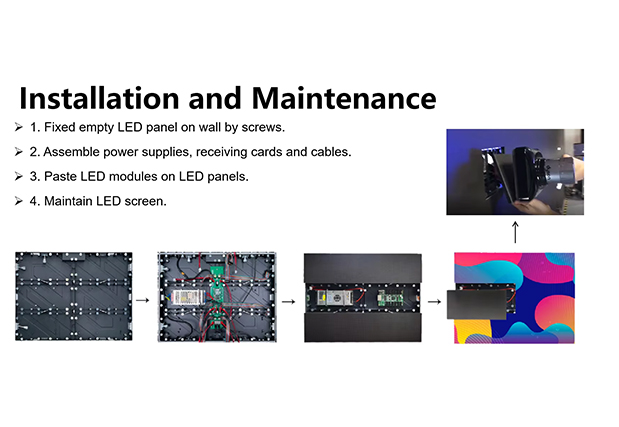

Installation Methods

Supports hanging (single point/truss), wall mounting, floor stand, embedded installation, suitable for a variety of load-bearing structures (concrete, steel structure, glass curtain wall).

Optional mobile base for quick deployment and position adjustment of the screen.
