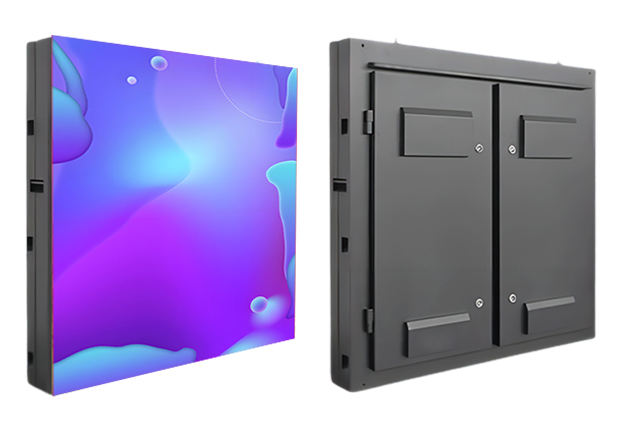

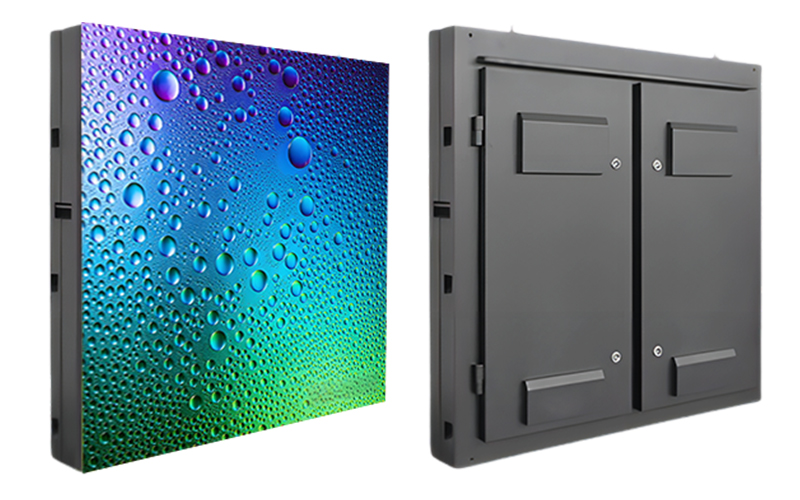

Cabinet Dimension:
960(W)×960(H)mm
Material: Iron
Pixel Pitch Of Products:
P2丨P2.5丨P3丨P4丨P5丨P6丨P6.67丨P8丨P10丨
1.Standardised size and flexible customisation
The standard box size is 960×960mm, and it supports the customisation of special sizes (such as shaped splicing or curved screen) according to the needs of the scene.
Flexible adaptation of module size, such as 320 × 160mm or 80 × 320mm, to facilitate the splicing of diverse display area.
2.Display Performance
High brightness: Typical brightness 5500nits +, sunlight is still clear and visible.
High refresh: 3840Hz ultra-high refresh rate, completely eliminating screen flicker. Suitable for outdoor scenes with long time exposure (such as traffic hubs, commercial plazas), reducing viewing fatigue and enhancing audience experience.
Wide viewing angle: Horizontal viewing angle of 120°, vertical viewing angle of 160°, to ensure that there is no colour deviation when viewing from multiple angles.

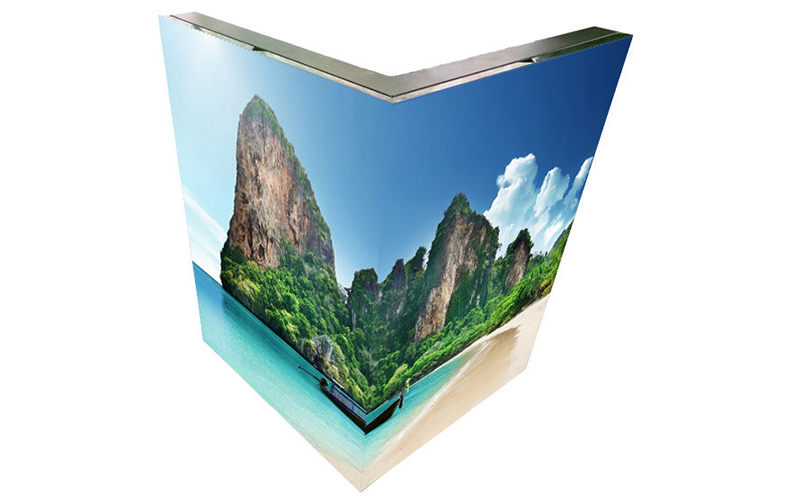

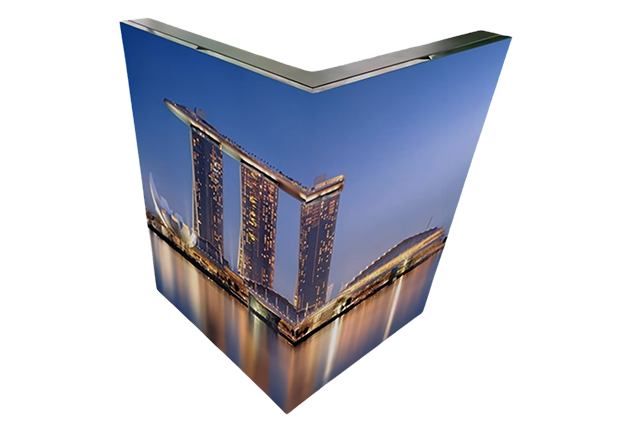

Right Angle Splicing:
Supports 90-degree right angle splicing, suitable for building corners or square billboards to achieve seamless screen transition.

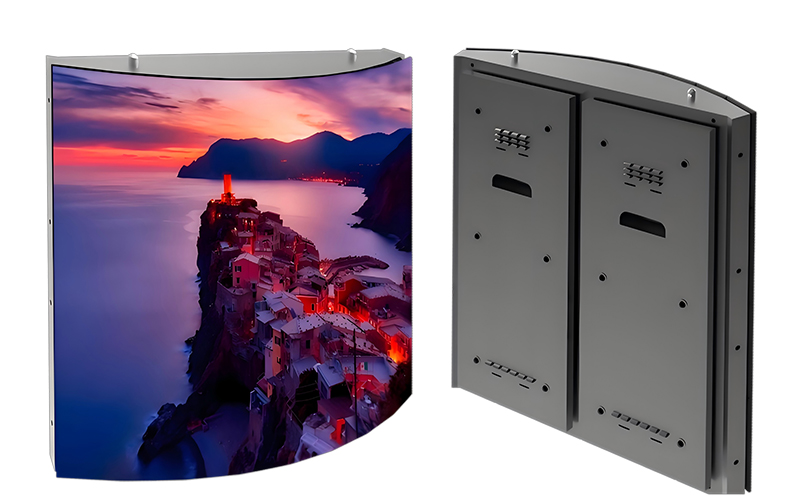

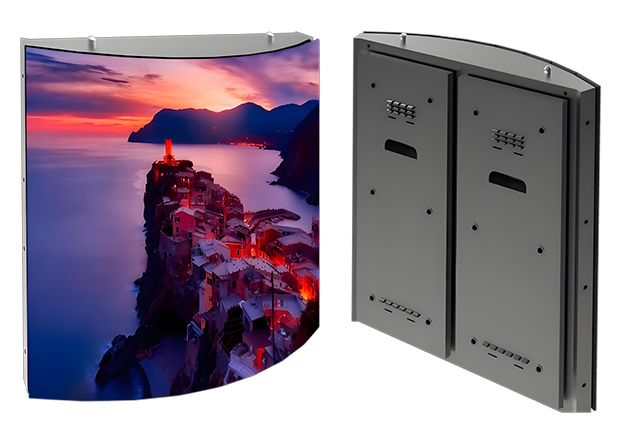

Arc splicing:
The box adopts arc custom design, can be spliced with arc, cylindrical, wave and other shaped screen, to adapt to the creative display scene.

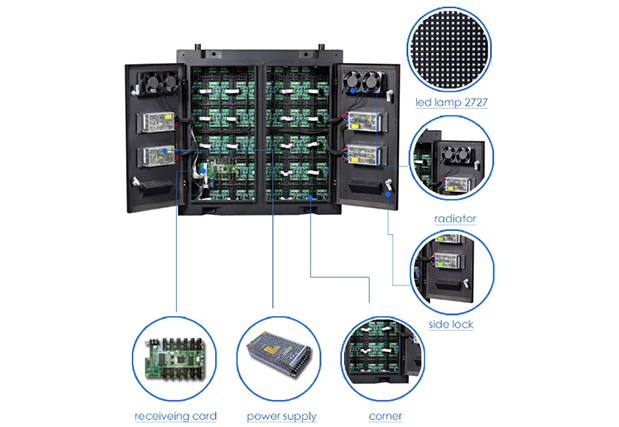

High-efficiency cooling system:
Built-in cooling fan and punching shutters, combined with air convection design, ensure stable operation under high temperature environment.
Wide temperature range:
-30℃ to 80℃, suitable for different climatic regions around the world.

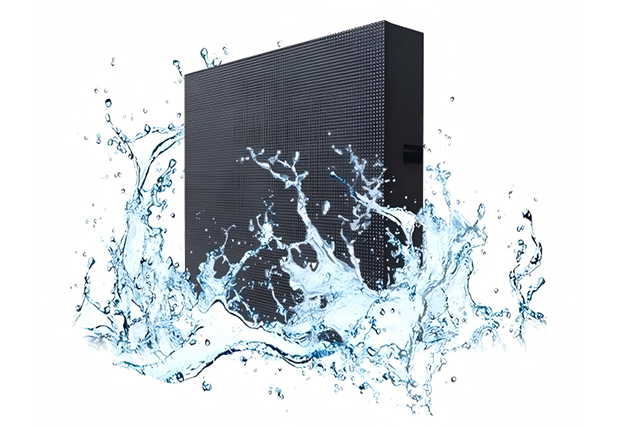

Waterproof and dustproof:
The sealed structure of the box has passed IP65 protection level certification, effectively resisting rain, fog and other harsh outdoor environments.
Corrosion-resistant material: sheet metal iron box material, surface plastic spray treatment, anti-rust, anti-oxidation, to extend the service life.
Application scenario
Stadium & Event Live Streaming
Building facades and city landmarks
Shopping centre facade
Traffic information and public safety
