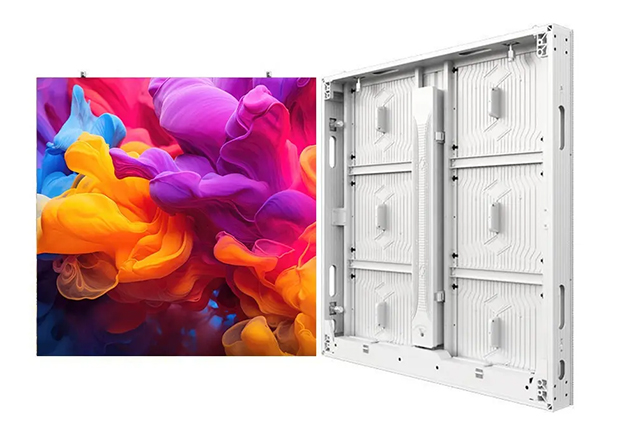

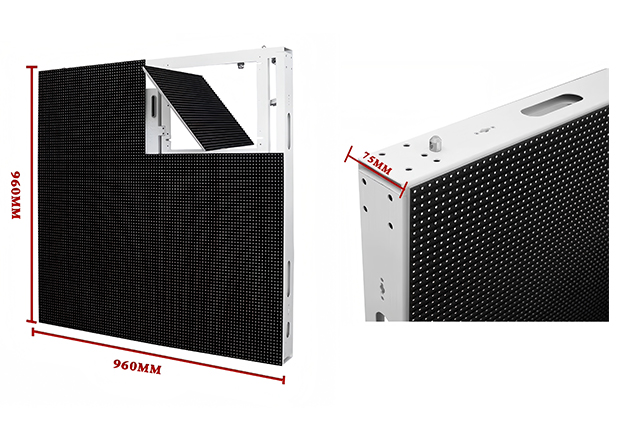

Cabinet Dimension:960(W)×960(H)mm
Material: Aluminum
Pixel Pitch Of Products:
P5.71丨P6.67丨P8丨P10丨

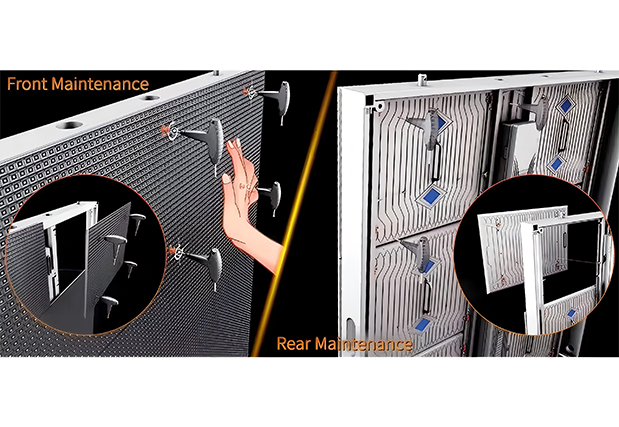

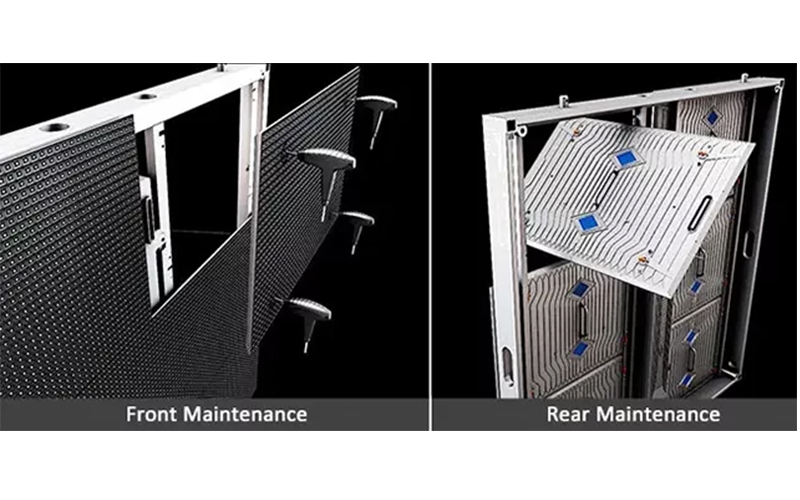

Easy front and rear maintenance
Supports quick insertion and removal of modules and pre/post maintenance modes, replacing faulty units without disassembling the whole screen, saving maintenance time and costs.

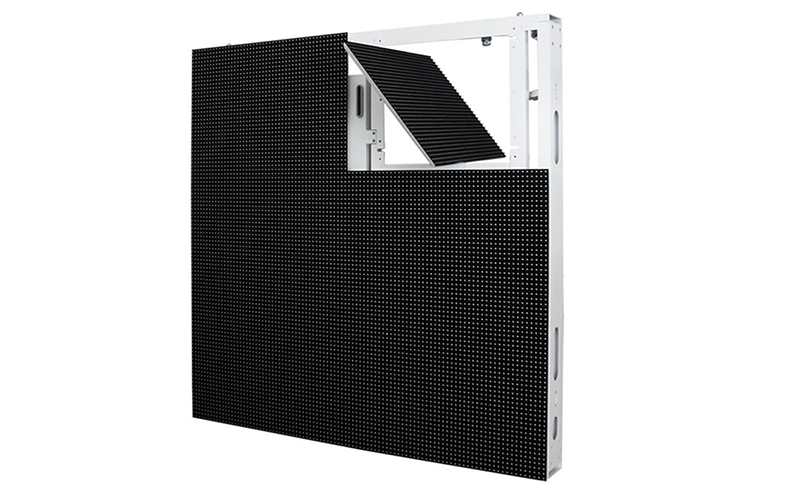

Front maintenance: support single module fast disassembly (magnetic / snap design), no need to reserve space on the back, suitable for wall mounting.

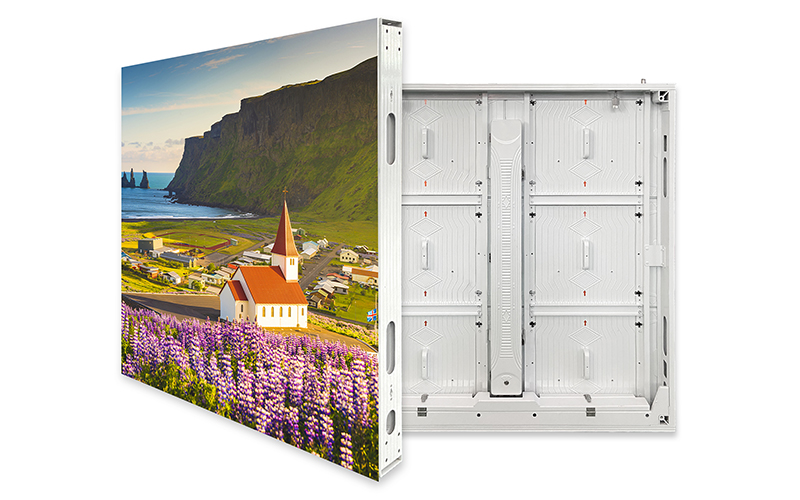

Rear maintenance: lightweight box (aluminium), can be disassembled independently for maintenance, reducing maintenance time and labour costs.

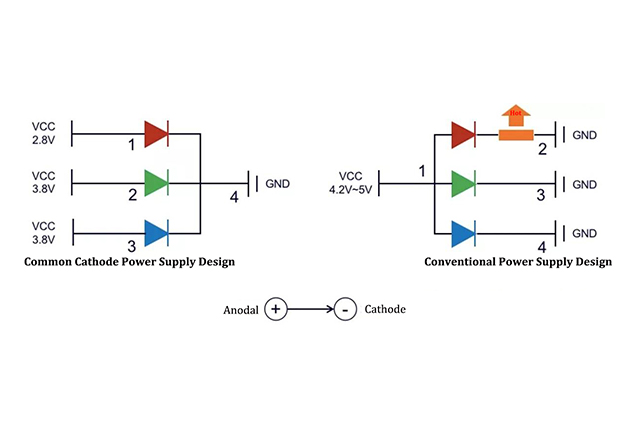

Energy-saving aluminum screen using a common negative power supply to drive the LED display, 2.8V + 3.8V dual-channel precision respectively for the R, G, B chip to allocate the current voltage, the current first through the lamp beads and then to the negative pole of the IC, to reduce the forward voltage drop, the conduction of the internal resistance to become smaller, can be achieved to reduce the heat of the screen body, reduce power consumption, high efficiency response to the ideal energy-saving effect.

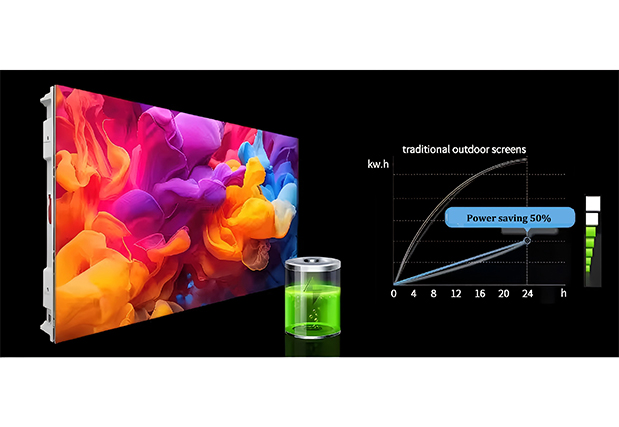

Low power consumption design: adopting high luminous efficiency LED lamp beads and low energy consumption driver IC, energy saving 30%-50% than traditional LED screen.
Intelligent dimming technology: automatically adjust the brightness according to the ambient light to avoid excessive power consumption and prolong the service life.
High-efficiency power module: power conversion efficiency ≥ 90%, reducing energy waste, in line with international energy-saving certification (such as CE, RoHS)

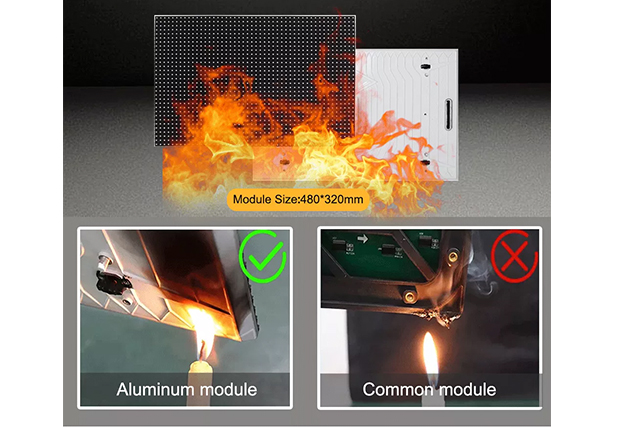

Low Temperature Rise and Efficient Heat Dissipation

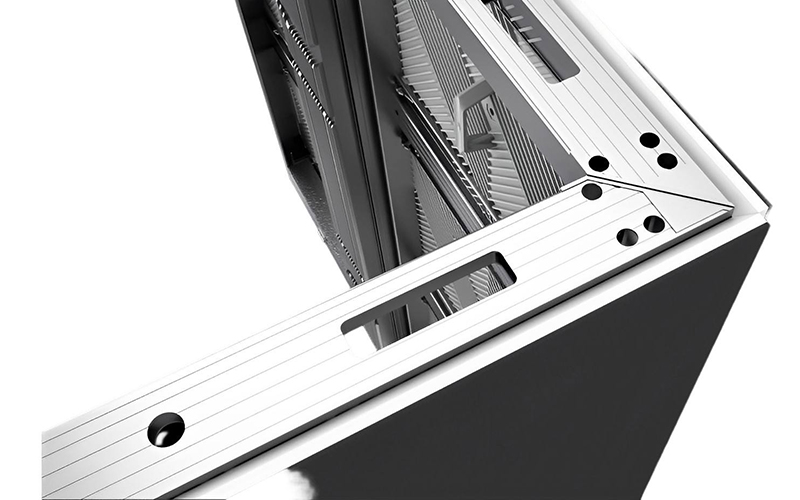

Aluminium thermal conductivity advantage: Aluminium chassis conducts heat quickly, and with the design of cooling fins, it reduces the temperature of core components.
Natural Convection: Optimised air duct structure, no need for additional fan, silent and energy saving, and reduce failure points.
Low-temperature operation technology: Through the design of heat conduction and heat dissipation system of aluminium chassis, the surface temperature of the screen body is only about 30℃, which reduces the energy loss caused by high temperature.

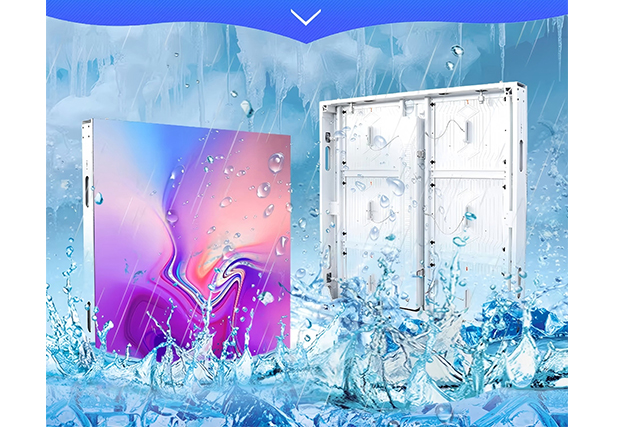

Excellent waterproof and dustproof
IP66 protection grade: Fully sealed aluminium chassis structure + waterproof adhesive strip design, effectively resisting heavy rain, sand and dust and other inclement weather.
Anti-corrosion surface treatment: aluminium shell is anodized/sandblasted to resist acid and alkali, oxidation, high humidity and salt spray environment.
Seamless splicing of the box: close docking between modules, eliminating hidden water seepage, ensuring long-term outdoor stable operation.

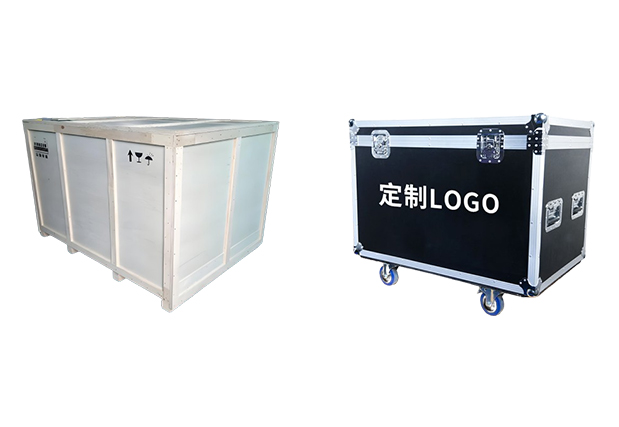

Packaging Design
Adopting aluminium alloy frame + shockproof lined pearl cotton or adopting wooden box + shockproof lined sponge packaging, which can resist the risks of collision and moisture in transport.
Application scenario
Building facade advertising
Commercial Plaza Digital Signage
Live Stadium Events
Concert/Festival Stage Backdrops
